Also available, our standard UV Coaters SUV-18 & SUV-24. And now available, our new smaller footprint GLASS COATERS; GLASS-19 & GLASS-25.

SUV-24 PLUS GLASS COATERTM

Shark Finishing Machinery makes every effort at time of publication to ensure the accuracy of its equipment information. Shark Finishing Machinery will not be liable for omissions and/or errors. Due to continued changes and improvements of our product line, specifications and information are subject to change without notice. Actual results are dependent upon application,paper stock, print engine used and environmental conditions can and will affect results.

FINISH smart with SHARK


Speed (hand fed) - 20 feet per minute
Max. paper width - 25.25in. / 64.1cm / 641mm
Max paper length - No limit
Maximum paper thickness - 0.09in / 0.228cm / 2.286mm
Warm up time - 5 min.
Feeding - Manual
Feeder - Optional
Floor Model - Yes
Variable Speed - Yes

Glass Finish - Yes

Soft Touch Finish - Yes

Use with Offset - Yes

use with Digital - Yes
Pump recirculation system - Yes
Emergency Stop - Yes
Operation Language - English
Power - 220v / 50/60hz / 1 phase
UV Lamp - 1
IR Lamp - 5
Machine Weight - 617 lbs. / 280kg.
Machine Size ( L x W x H ) - 105x41x41in. / 266.7x104x104cm / 2667x1041x1041mm
Warranty - 1 year

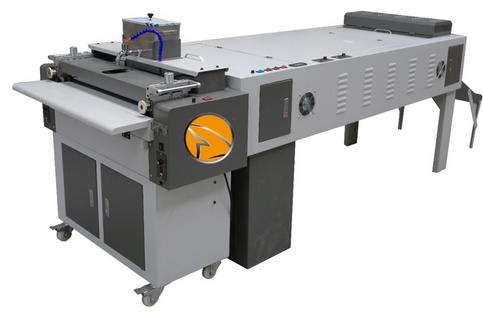

Shark Machinery introduces to its Smart line of print finishing equipment the SUV-24 Plus UV Coater. Like other Shark Coaters, this machine coats using traditional UV coating liquid. In addition, it has the ability to offer a “soft touch” and “glass shine” lamination like finish at a fraction of the cost and time of lamination. The SUV-24 Plus is a low-maintenance, ultra-violet light, curing coating system, which provides a durable and high-quality finish to your printed sheets. Its pump recirculating system ensures minimal waste. This machine gives outstanding results on both offset and digitally printed stock with max width of 25.25” wide. The SUV-24 Plus is a hand-fed unit with optional feeding devices available. Offer your customers a superior finish that is sure to impress by adding the SUV-24 Plus to your shop.

 ADDITIONAL INFORMATION:

Click to download the brochure
