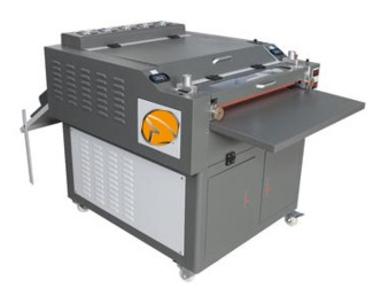

GLASS-19 UV Coater

GLASS-19 GLASS UV COATERTM

FINISH smart with SHARK

CLICK TO DOWNLOAD THE BROCHURE FOR ADDITIONAL INFORMATION

Speed - 20 feet per min.(hand-fed)
Max. paper width - 19in. / 48.26cm
Max paper length - No limit
Maximum paper thickness - 0.078in / 0.05cm
Warm up time - 5 min.
Feeding - Manual
Floor Model - Yes

Use for Offset - Yes

Use for Digital - Yes
Variable Speed - Yes

Feeder available - No
Emergency Stop - Yes
Operation Language - English
Power - 220v / 60hz / 1 phase
UV Lamp - Yes, 1
IR Lamp - Yes, 2
Machine Weight - 436 lbs. / 198kg.
Machine Size (L x W x H) - 47 x 35 x 49in. / 119 x 89 x 124cm
Warranty - 1 year

Specifications:

CLICK TO SEE VIDEOS OF OUR MACHINES IN OPERATION

The GLASS COATERS™ line from Shark Machinery is redefining the UV coating and laminating industry. The new GLASS-19 Coater delivers an unmatched super glossy, lamination-like finish—a look no other UV coater on the market can achieve.

Unlike traditional lamination, this advanced UV liquid coating system applies the same high-end glossy effect at just a fraction of the cost and time.

Built for efficiency and durability, the GLASS-19 is a low-maintenance UV light curing system designed to provide a long-lasting, premium finish to your printed sheets. It performs exceptionally well on both offset and digitally printed stock, with a maximum sheet width of 19 inches.

Featuring a hand-fed design, the GLASS-19 allows you to deliver superior finishing results that will impress your customers and elevate your print offerings.

-Super Glossy Finish – Comparable to Lamination
-Cost-Effective & Time-Saving
-Durable UV-Cured Coating
-Compatible with Offset & Digital Prints
-19” Max Sheet Width
-Hand-Fed, Easy Operation

Bring next-level finishing to your shop with the GLASS-19 Coater and set your print services apart.

Our Glass Coater is also available in 25", see Glass-25
